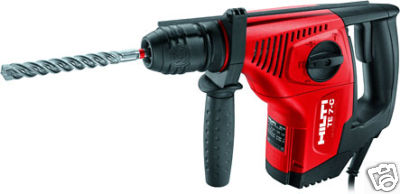

Hilti TE7C
Style # 070-0100
Hilti TE7C Hammer Drills are great for drilling up to 3/4'' holes in concrete, block or brick. Drill can be used with chisel bits 1''-2'' wide.
Requires SDS Plus bits.
Technical Data
Rated input 720 W
Weight according EPTA-Procedure 01/2003 3.5 kg
Voltage 120 V
Nominal Current 6.3 A
Mains frequency 50-60 Hz
Protection class Protection Class II
Reverse Switch Yes
Variable speed switch Yes
Approvals UL
TPS - Theft Protection System No
Depth Gauge Yes
Dimensions (L x W x H) 13.5 x 3.4 x 8.5 in
Working modes Hammering & rotating;rotating only;chiseling
Single impact energy 1.9 ft-lbs
Full hammering frequency 4020 impacts/minute
Hammering Speed Under Load - Setting II 900 rpm
Speed 1 No Load 740 rpm
Drilling performance - Base material B35 concrete
Optimum drilling diameter in concrete (Imperial)
Maximum drilling diameter range for hammer drill bits - range 3/16 in - 1 in
|
