Bil-Jax 45' Tow Behind Lift
|
(click for larger image)
|
Bil-Jax 45' Tow Behind Lift
Style # 130-0111

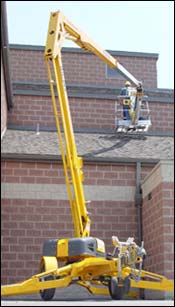

4527A Articulating Boom Lift The trailer-mounted boom lift provides 51' of working height, 27' outreach, 20' 9'' up and over height, and features an automatic, self-leveling hydraulic outrigger system that allows for setup in 30 seconds when all four outriggers are deployed simultaneously. This new 4527A Articulated Aerial Work Platform is available with either 24v DC battery power.
51 ft 8 in (15.8 m) working height
• 27 ft (8.2 m) outreach
• 20 ft 9 in (6.3 m) up and over height
• 500 lb (227 kg) lift capacity
• 19 ft 11 in (6.1 m) stowed length
• 65 mph (105 km/h) tow speed rating
• 700 degree non-continous turntable rotation
|
|
