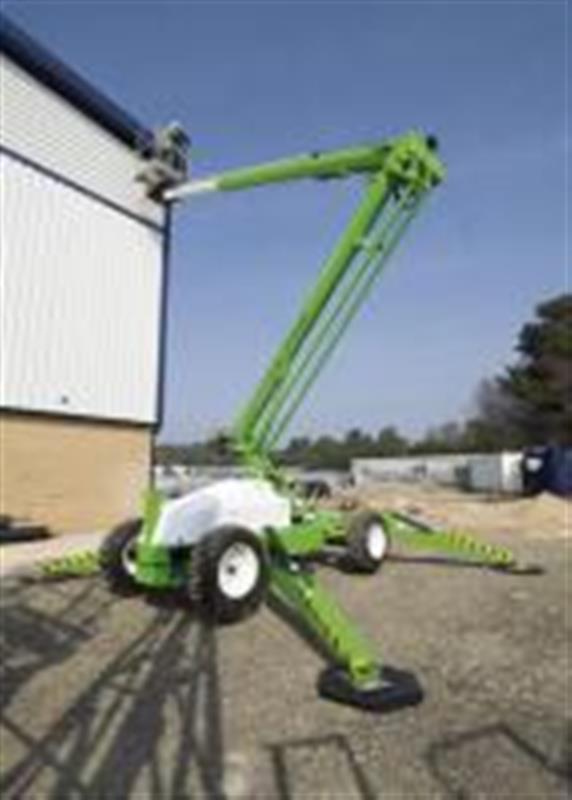

Nifty SD50 4x4 Lift 50'
|
(click for larger image)
|
Nifty SD50 4x4 Lift 50'
Style # 130-0149
Nifty SD50 4x4 lift is great for trimming trees, pressure washing, painting and many other jobs. The lift is light enough to be pulled by a 3/4 ton pickup but still offers you the ease of driving on the job site. It has 4 outriggers that go down to stabilize the lift before going up to work. Everything works from the basket so no getting out to raise and lower the outriggers.
Working Height 56ft
Platform Height 49ft 6in
Machine Length 18ft 4in
Machine Width 5ft 3in
Travel Speed 5.2mph
Turning Radius 17ft
Cage Size 3ft 7in x 2ft 2in
Working Outreach 28ft 6in
Machine Height 6ft 11in
Working Width 14ft 5in
Gradeability 30% (17°)
Min Weight 6000lbs
Cage Rotation 100°
Safe Working Load 500lbs
Kubota Diesel Engine
Bi-Energy (Engine and Battery)
|
|
