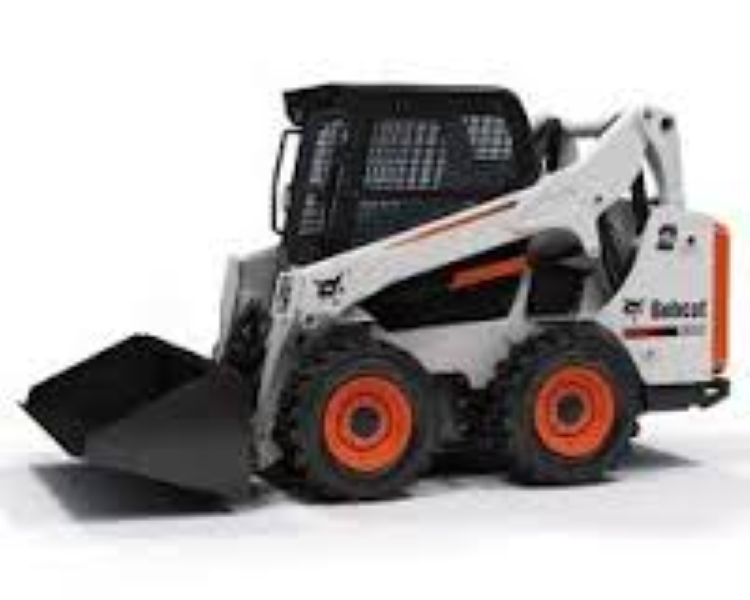

Bobcat S570 Loader
|
(click for larger image)
|
Bobcat S570 Loader
Style # 230-0100
S570
Kubota Diesel 61 HP
Turbocharged Engine
Performance
S570
Rated Operating Capacity (SAE) 1950 lbs
Tipping Load 3900 lbs
Operating Weight 6480 lbs
Travel Speed 7.4 mph
Travel Speed (2-speed option) 11.1 mph
Capacities
Fuel Tank 24 gal
Hydraulic System
System Relief @ Quick Couplers 3300 psi
Auxiliary Std Flow 16.9 GPM
Auxiliary High Flow 26.4 GPM
Dimension
Length 101.9 in
Length without Attachment 101.9 in
Length with Standard Bucket 130.3 in
Width 66 in
Width (with bucket) 68 in
Height 76.3 in
Height with Operator Cab 76.3 in
Height to Bucket Hinge Pin 118.2 in
Reach @ Maximum Height 29.6 in
Turning Radius 78.8 in
Wheelbase 40.6 in
|
|
