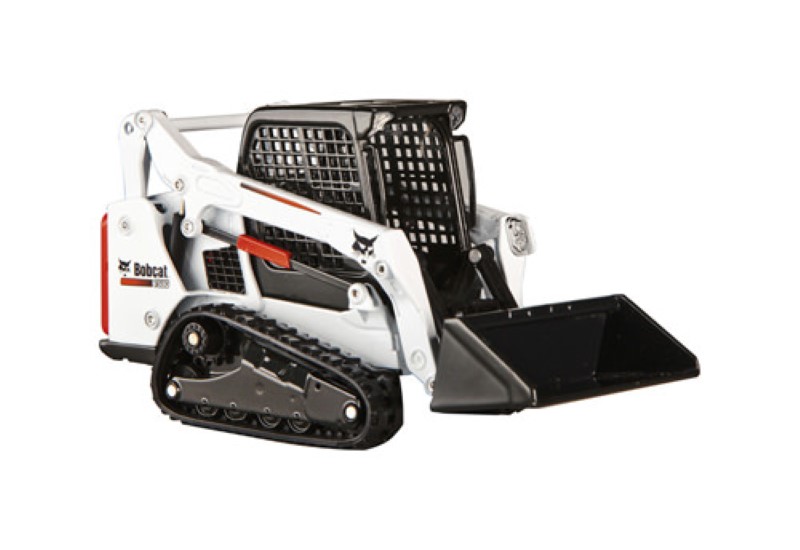

Bobcat T590 Track Loader
|
(click for larger image)
|
Bobcat T590 Track Loader
Style # 230-0105-0001
T590 Compact Track Loader
With its vertical lift, the K-Series T590 is ideal for lift and carry jobs and for loading trucks. Plus, it maneuvers easily when space is limited. Choose standard narrow tracks for best floatation on sand and turf. Other options include shock-absorbing ride control for a smoother ride.
Engine Fuel Diesel
Horsepower 66 HP
Turbocharged Engine Rated Operating Capacity (SAE) 1950 lbs
Operating Capacity (50% of Tip) 2786 lbs
Tipping Load 7283 lbs
Operating Weight 7775 lbs
Travel Speed - 7.1 mph
Fuel Tank 28 gal
Pump Capacity 16.9 GPM
Auxiliary High Flow 26.4 GPM
Length 101.8 in
Length with Standard Bucket 130.3 in
Width 66 in
Width (with bucket) 68 in
Height 76.3 in
Height with Operator Cab 76.3 in
Height to Bucket Hinge Pin 118.2 in
Reach @ Maximum Height 30.9 in
Length of track on ground 55.2 in
Track Width 12.6 in
Operating Lights std
Suspension Seat std
Engine Shutdown std
Horn std
|
|
